20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe

Product Categories
Qingzhou KEDA Environment Protection Machinery Co., Ltd
Contact Now

20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe

Brand Name : keda

Model Number : CSD500

Certification : ISO9000

Place of Origin : China

MOQ : 1 unit

Price : USD65400

Payment Terms : T/T, L/C

Supply Ability : 1 unit / 60 days

Delivery Time : 70 days

Packaging Details : Nude

work capcity : 4000-4500cbm

engine power : 1100-1350kw

Dredging depth : 15 m,20 m,7 m,10 m

Type : Cutter Suction Dredger,sand dredger,Dredging machine

Condition : New

Draught : 140 cm,100 cm,170 cm,150 cm,120 cm

Power type : Diesel

Dimension(l*w*h) : Customized

Warranty : 1 Year

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support,Field maintenance and repair service

Application : Sand Dredging,San Mining for Cutter Suction Dredger for River Sand Mining,Sand suction and gold mining,Cutter suction dredger Machine

Color : Customer's Request

Structure : Assemble,Dismountable Hull Structure,Dismantle,Easy to dismantle and set up,Dismountable Installation

Product name : Cutter Suction Dredge,Sand Dredging Machine,24 inch cutter suction mud dredger for sale in Bangladesh

Discharge distance : 1500-2000m,as required

Usage : Sand and mud dredging,Dredging Mud/sand/mining,Port River Lake Sea,hot sale cutter suction dredger used for dredging river sand

Name : Hydraulic Cutter Suction Dredger Ship,China hydraulic Sand cutter suction rive dredger in Bangladesh

Working capacity : 1050cbm/h,100m3,220m3,2200m3/h

Discharging distance : 1500m

Work site : lake,River Sea,Inland river,sea,Shallow Water

Contact Now

keda Diesel Engine Equiped Carbon Steel pump speed Cutter Suction Dredger pipe diameter

Carbon Steel 20 Inch Cutter Suction Dredger For Sell

1. 4000 Cubic meter water flow per hour

2. Gravel size 225mm max

3. Pum head 40-67m

4. pump speed 350-500rpm

5. Pump effect 76-80%

6. Pump intake: 600mm

7. Pump out let : 450mm

8.NPSH:<4.5

AVAILABLE CSDS IN THE HD DREDGER SERIES
HD DREDGER HD250 HD350 HD450 HD500 HD550 HD650
Total power (kW) 234 363 598 1297 1668 2361
Cutter power (kW) 30 60 100 170 200 350
Dredging depth (m) 6 8 10 13 15 16
Pipe diameter (mm) 250 350 450 500 550 650
Discharge distance(m) 700 1200 1500 1500 2000 2500
Sand/mud working capacity(m3/h) 120 250 400 600 700 1000
Total consumption(L/H) 42 65 108 233 300 425

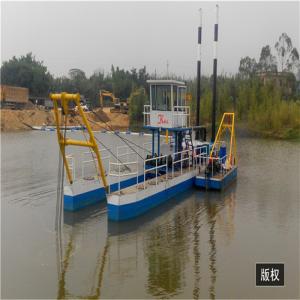

20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe

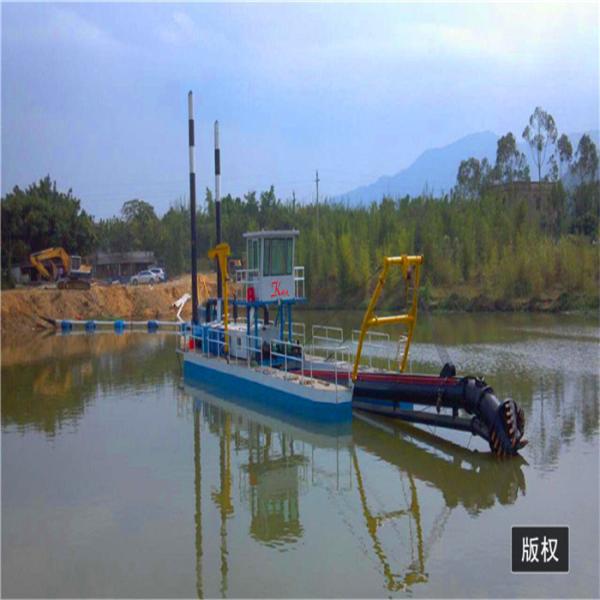

20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe

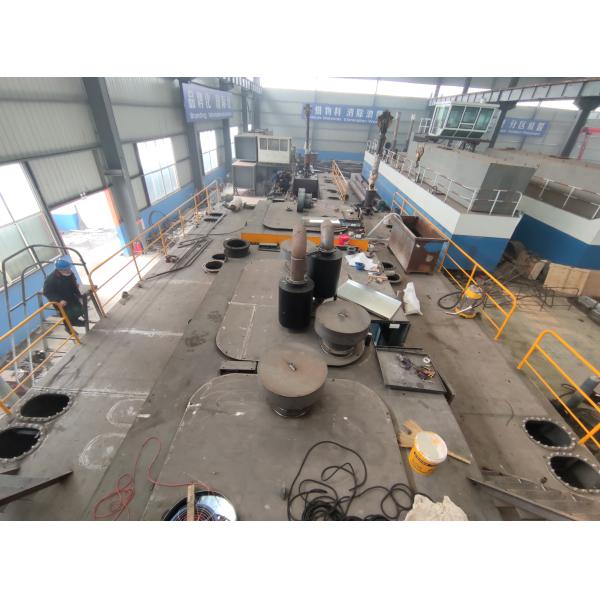

20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe

At present, it is a kind of ship widely used in beach dredging engineering. It uses the front section of the suction pipe to install a rotary reamer device around the suction pipe to cut and stir the sediment at the bottom of the river, and then through the suction pipe to transport the suspended sediment to the sediment storage yard with the help of a strong pump force. Its dredging, transporting and unloading process can be completed continuously at one time. It is a kind of ship It is a kind of dredger with high efficiency and low cost, which is a good underwater dredging machine.

Basic CSD Parameter
Model KDTJ200 KDTJ260 KDTJ300 KDTJ400 KDTJ500
Dredger Body
Dimensions(L*W*H)m 12.5*4.6*1.3 12.5*5.8*1.6 14.5*5.8*1.8 22*6.4*2 26*7.1*2.2
Engine room(m) 7.5*2.25*1.4 8*2.8*1.6 9*3.2*1.8 12*3.4*2 14*3.5*2.2
Dredging data
Standard dredging depth 6-7m 6-8m 8-10m 12-14m 12-14m
Pump model 8/6” 10/8” 12/10” 14/12” 450WN
Water flow 450m3/h 800m3/h 1100m3/h 1900m3/h 3200m3/h
Suction pipeline diameter(mm/inch) 260 300 350 400 500
Discharge pipeline diameter(mm/inch) 200 260 300 400 500
Devices
Total power KW 176kw 258kw 353kw 640kw 1200kw
Generator set(kw) 24 24 24 24 36
Cutter head
Diameter (mm) 850-30 950-40 1100-50 1300-110 1700-140
Winch(hydraulic)
Ladder winches JC-3000 JC-4000 JC-4000 JC-6000 JC-12000

20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe20 Inch pump speed Cutter Suction Dredger pipe diameter suction pipe

All the products are with different sizes for customers’ choices. We can also design and produce special types of machinery according to customers’ requirements.
